Idealpos i15

Idealpos i15 Overview

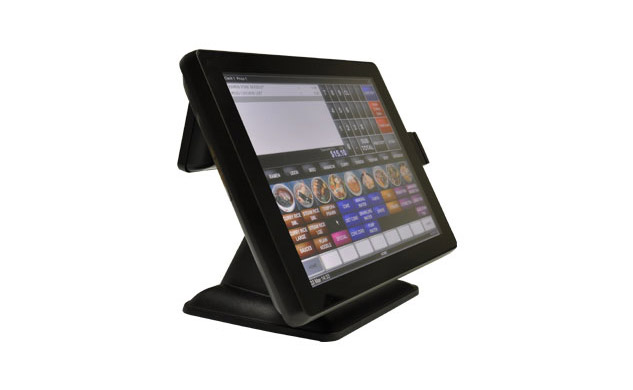

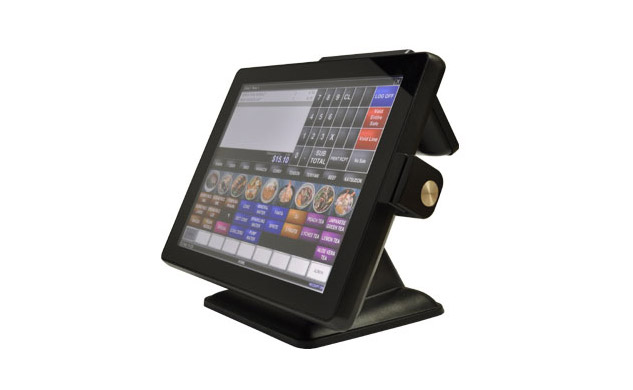

The Idealpos i15 showcases a "TrueFlat" touchscreen design without a rim to provide a 100% flat surface with narrow borders around the IP66-rated waterproof front panel. As standard,it comes equipped with the latest Projected Capacitive Touch (PCT) and scratch resistant surface to withstand the harshest environments.

Powered by Intel Dual Core Processor Technology, the Idealpos i15 POS Terminal offers excellent and steady performance to help you serve customers quickly yet it consumes very little power and demonstrates the efficiency of Intel’s CPU chipset/graphic combination.

For maximum reliability, the Idealpos i15 is equipped with Smart Fan Adaptive Cooling Technology to keep the system within safe operating temperatures. Using convection cooling together with Hard Disk isolation from the mainboard heat source, the Idealpos i15 ensures exceptional performance, superior heat dissipation and low energy consumption.

The Idealpos i15 POS Terminal can be customised to suit your requirements with a variety of Back Panel Colours,VESA Pole or Metal Base Mounting Options, Rear LCD Advertisement Display, Card Reader,Dual Cash Drawers and much more.

Idealpos i15 Technical Specification

Intel Pineview-D D510 (Dual Core) 1.66 GHz withL2 Cache 1MB
1024×768 Resolution
Projected Capacitive Touch (PCT)
IP66 Compliance (front panel)
Dimensions without base 370mm (w) × 287mm (h) × 55mm (d)
Die-Cast Aluminium Base
VESA Mounting Option 100×100mm
External Power Supply
Microsoft POS Ready 2009 - Pre-Installed

Hardware Options

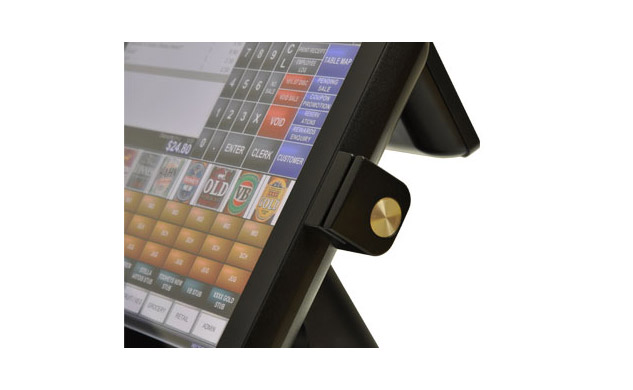

Magnetic Card Reader

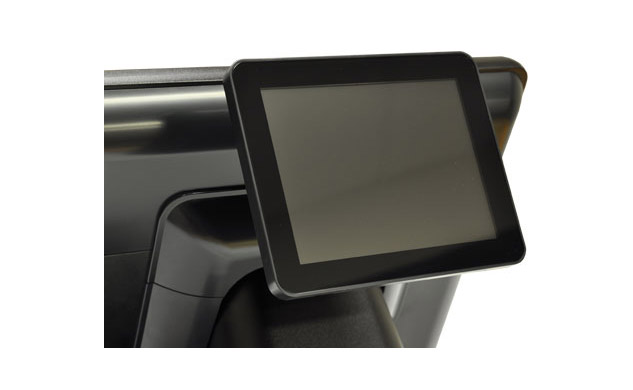

7" Customer VGA Display Screen
Cash Drawer Splitter Cable to run Dual Cash Drawers

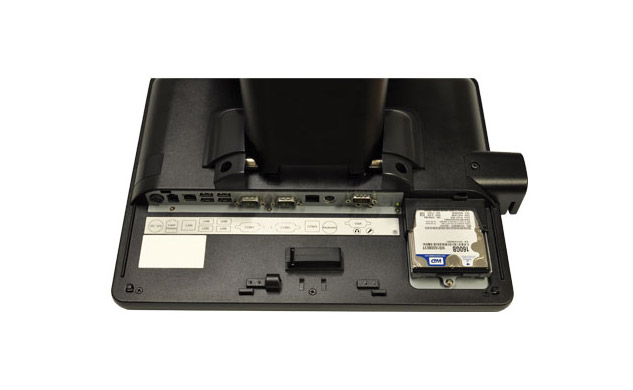

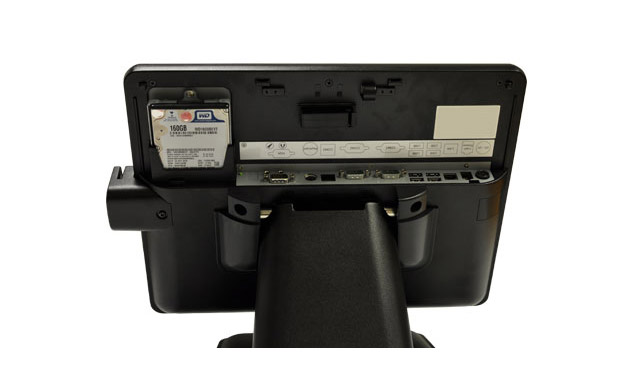

I/O Port Configuration

1 × RJ11 Cash Drawer Port (optional splitter cable for 2 Cash Drawers)
1 × Gigabit Ethernet Port
4 × USB 2.0
3 × Serial Ports
1 × VGA Port
1 × Speaker, 1 x Microphone Port
1 × PS2 Keyboard Port

  • True Flat Panel Design with IP66 Rating
  • Projected Capacitive Touch
  • Intel Pineview-D D510 Dual Core Processor
  • Flexible Mounting Options
  • Die-Cast Aluminium Base
